Klauke cutting tools offer an impressively broad range of applications.
No matter which material or cross sections you want to cut,
Klauke tools ensure you work simply, quickly and safely.
Battery Hydraulic Cutting Tools
Features of the AP Series Tools

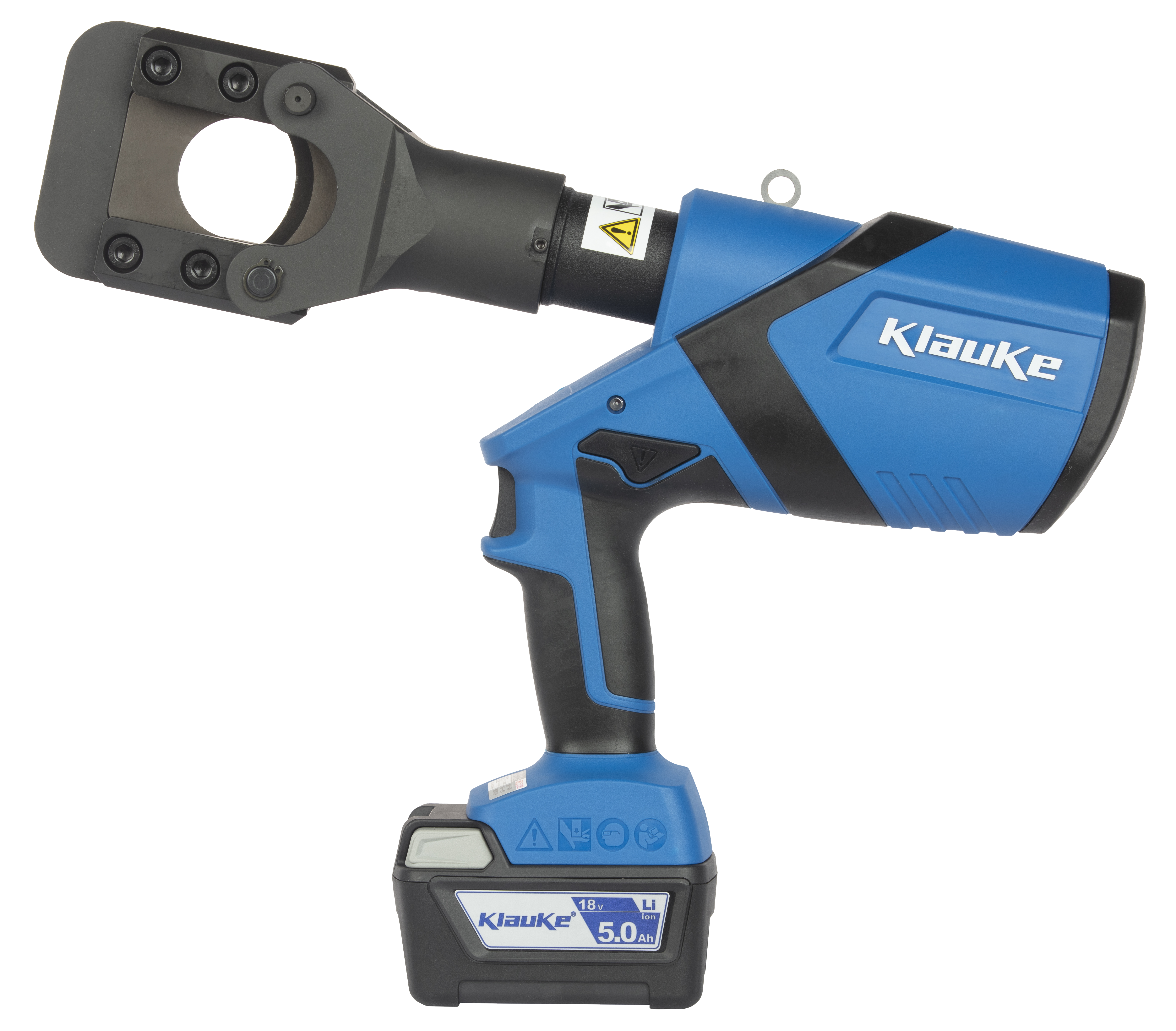

Model No.: ESG45AP
Catalog No.: 70668
Hydraulic Ram Force: 60 kN
Opening Size: 45 mm
Application: ACSR
Tool Weight: 5.7 kg. including battery
Head Rotation: 350°
Battery: 18V 5.0Ah lithium battery
Charging Time: about 80 mins.
No. of Cuts: 100 cuts per charge for JL/G1A-240/40 if full charge

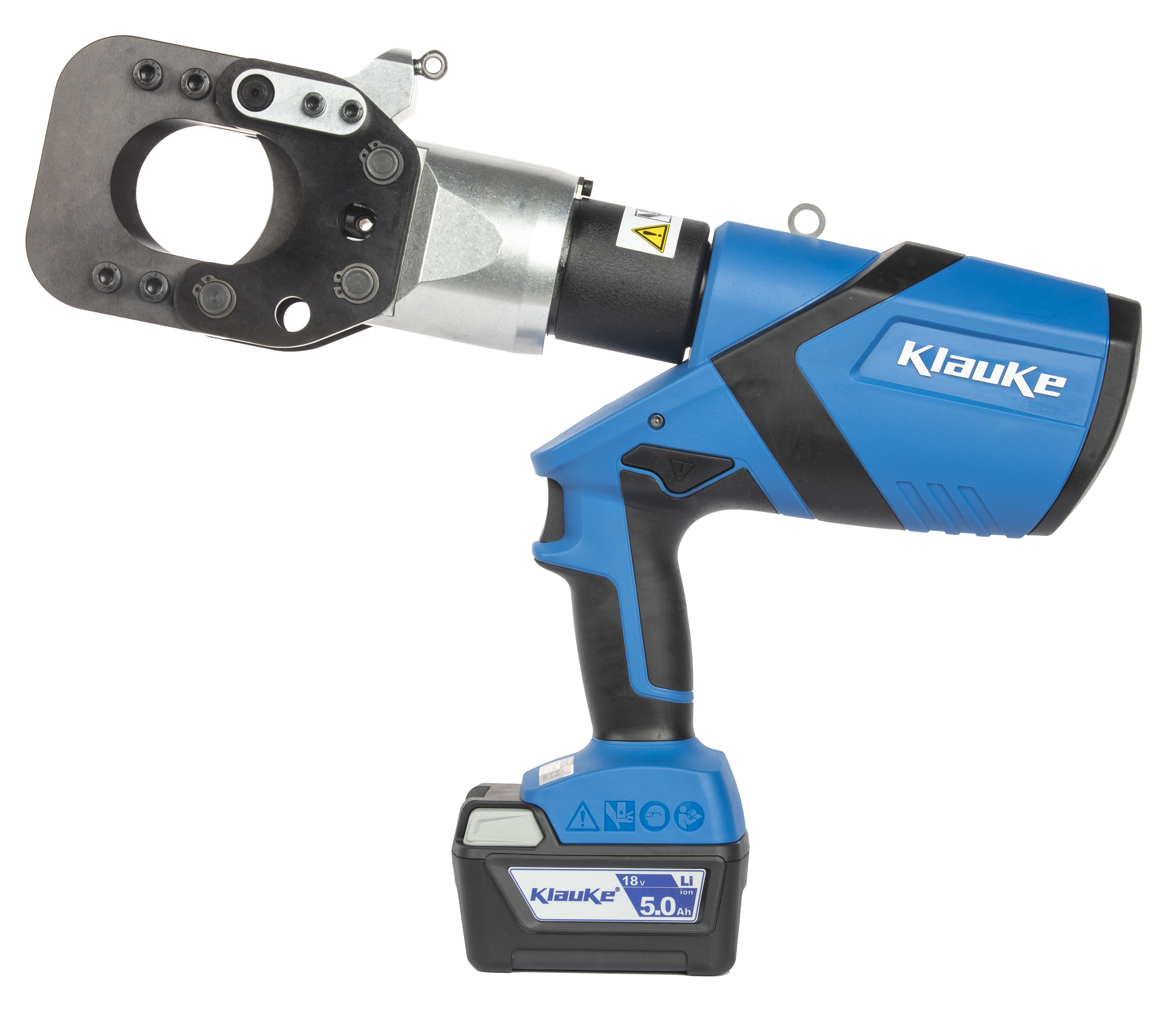

Model No.: ESG55AP
Catalog No.: 70673
Hydraulic Ram Force: 120 kN
Opening Size: 55 mm
Application: ACSR
Tool Weight: 8.0 kg. including battery
Head Rotation: 350°
Battery: 18V 5.0Ah lithium battery
Charging Time: about 80 mins.
No. of Cuts: 100 cuts per charge for JL/G1A-240/40 if full charge

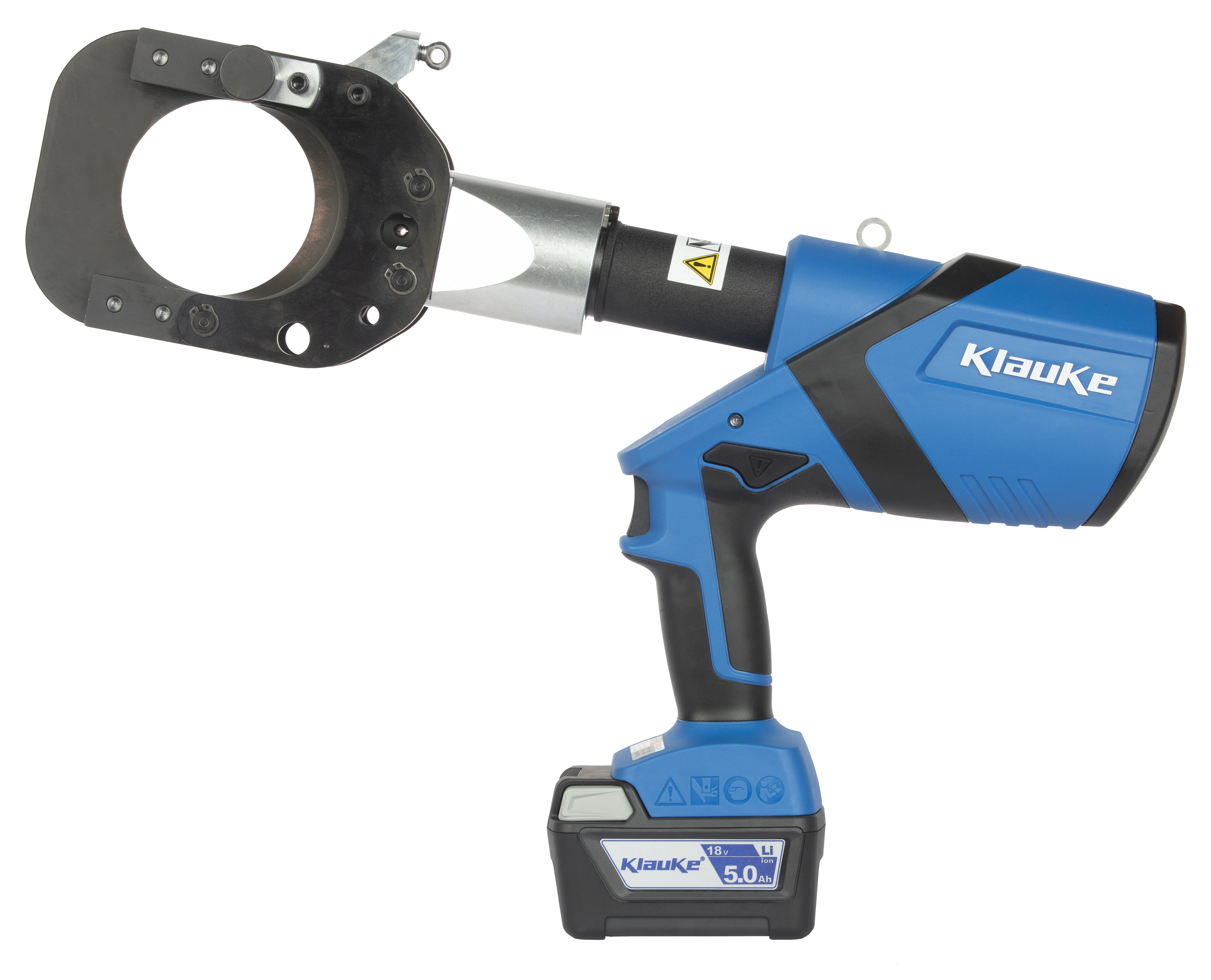

Model No.: ESG85AP
Catalog No.: 70678
Hydraulic Ram Force: 60 kN
Opening Size: 85 mm
Application: Soft, Cu/Al
Tool Weight: 6.6 kg. including battery
Head Rotation: 350°
Battery: 18V 5.0Ah lithium battery
Charging Time: about 80 mins.
No. of Cuts: 100 cuts per charge for 10kV YJV22 3x240 mm2 if full charge

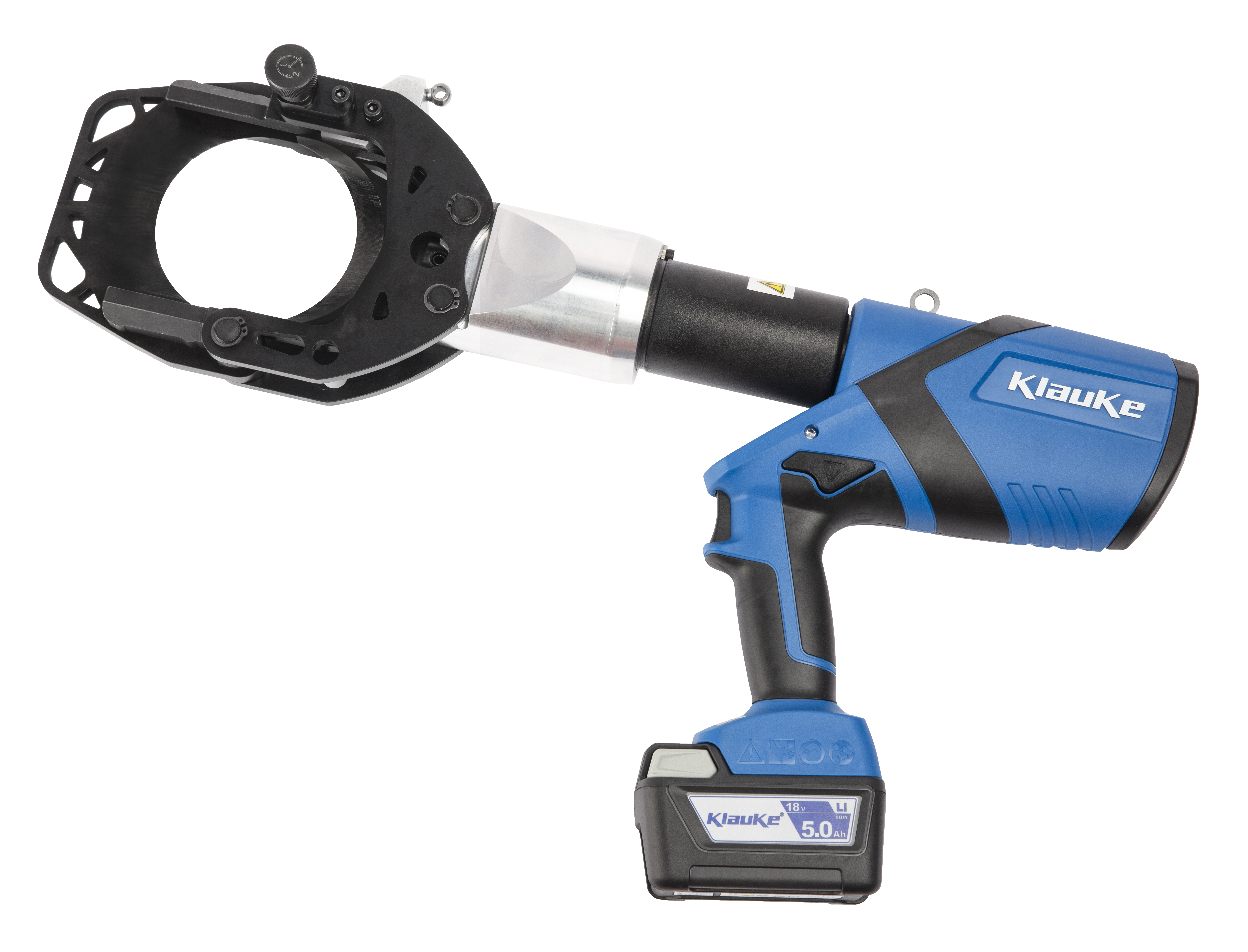

Model No.: ESG106AP
Catalog No.: 68913
Hydraulic Ram Force: 120 kN
Opening Size: 105 mm
Application: Soft, Cu/Al
Tool Weight: 9.5 kg. including battery
Head Rotation: 350°
Battery: 18V 5.0Ah lithium battery
Charging Time: about 80 mins.
No. of Cuts: 80 cuts per charge for 10kV YJV22 3x400 mm2 if full charge

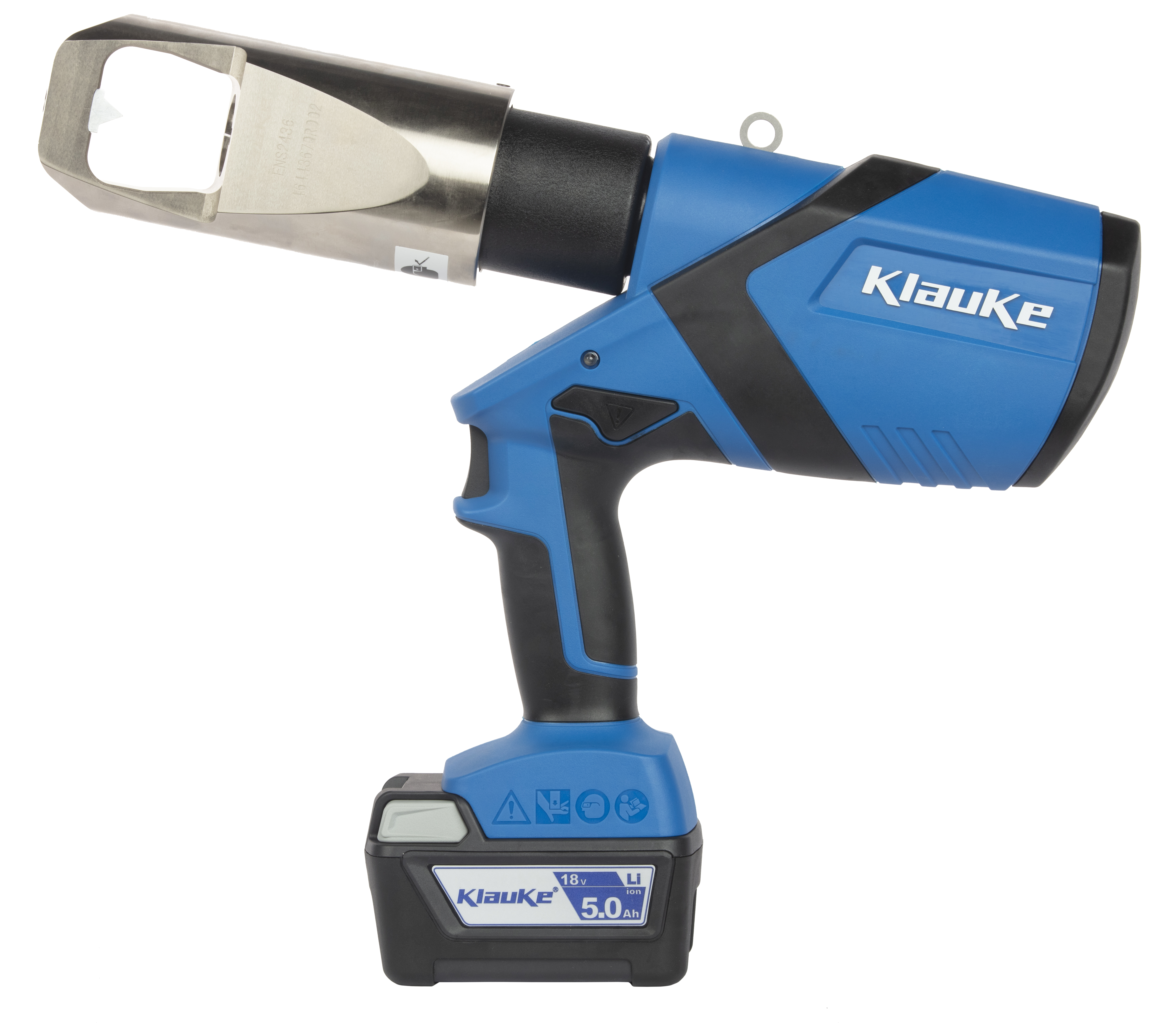

Model No.: ENS2436AP
Catalog No.: 70663
Hydraulic Ram Force: 120 kN
Cutting Range: M16 - M24 (dimension of nut 24mm-36mm)
Application: Nut strength 10.9 GPa
Tool Weight: 6.3 kg. including battery
Head Rotation: 350°
Battery: 18V 5.0Ah lithium battery
Charging Time: about 80 mins.
No. of Cuts: 100 cuts per charge for 10.9 GPa high strength M24 bolt if full charge
