Whether application-less or application-based: Klauke crimping tools give
you peace of mind for optimum processing. The right crimping tool
achieves connections that satisfy even the toughest requirements.
Battery Hydraulic Crimping Tools
Features of the AP Series Tools

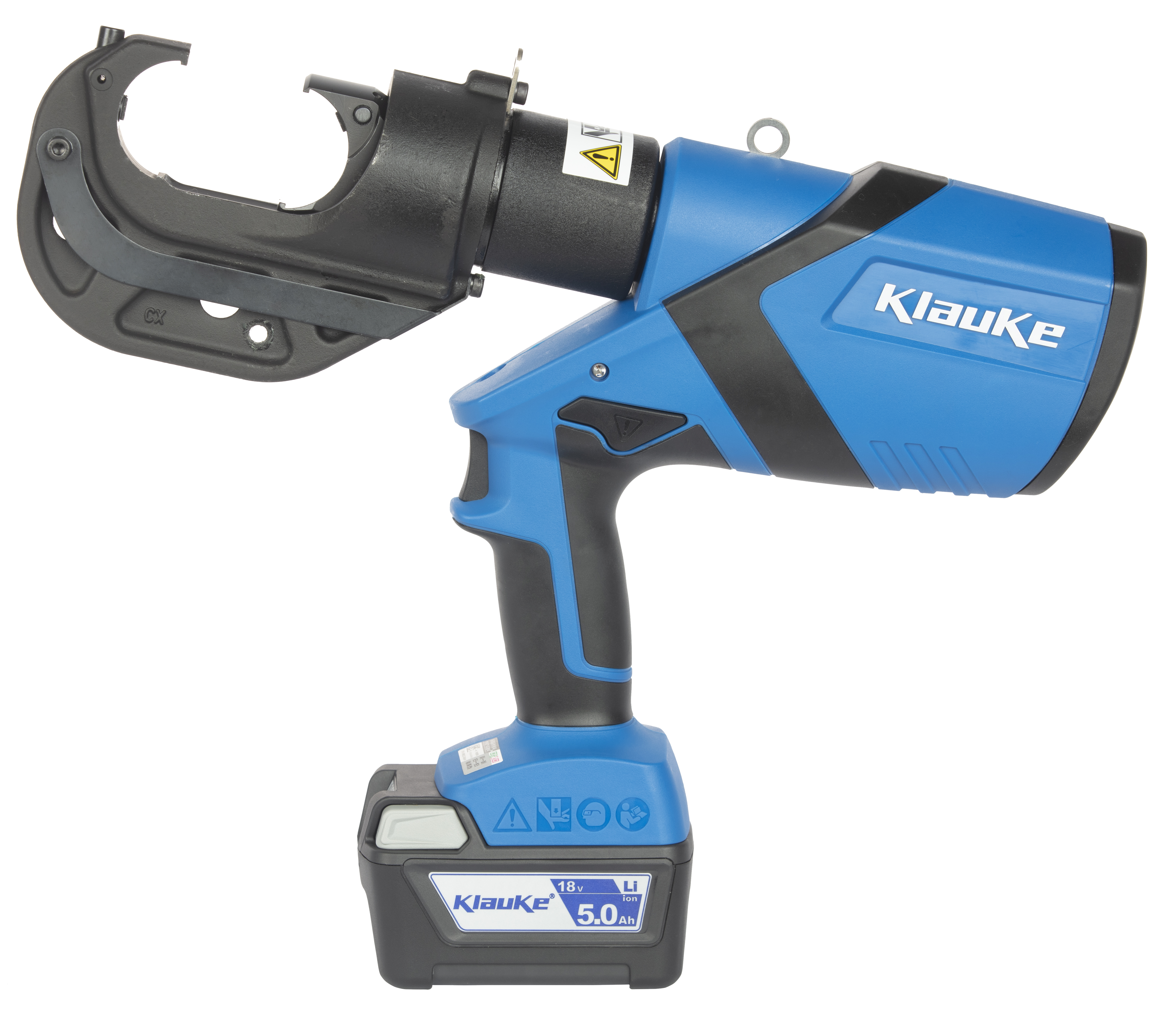

Model No.: EK12642AP
Catalog No.: 68908
Hydraulic Ram Force: 120 kN
Crimping Range: 16 - 400mm² (copper)
Opening Size: 42 mm
Tool Weight: 6.4 kg. including battery
Head Rotation: 350°
Battery: 18V 5.0Ah lithium battery
Charging Time: about 80 mins.
No. of Crimps: 300 crimps for crimping 150mm2 DIN copper terminal if full charge

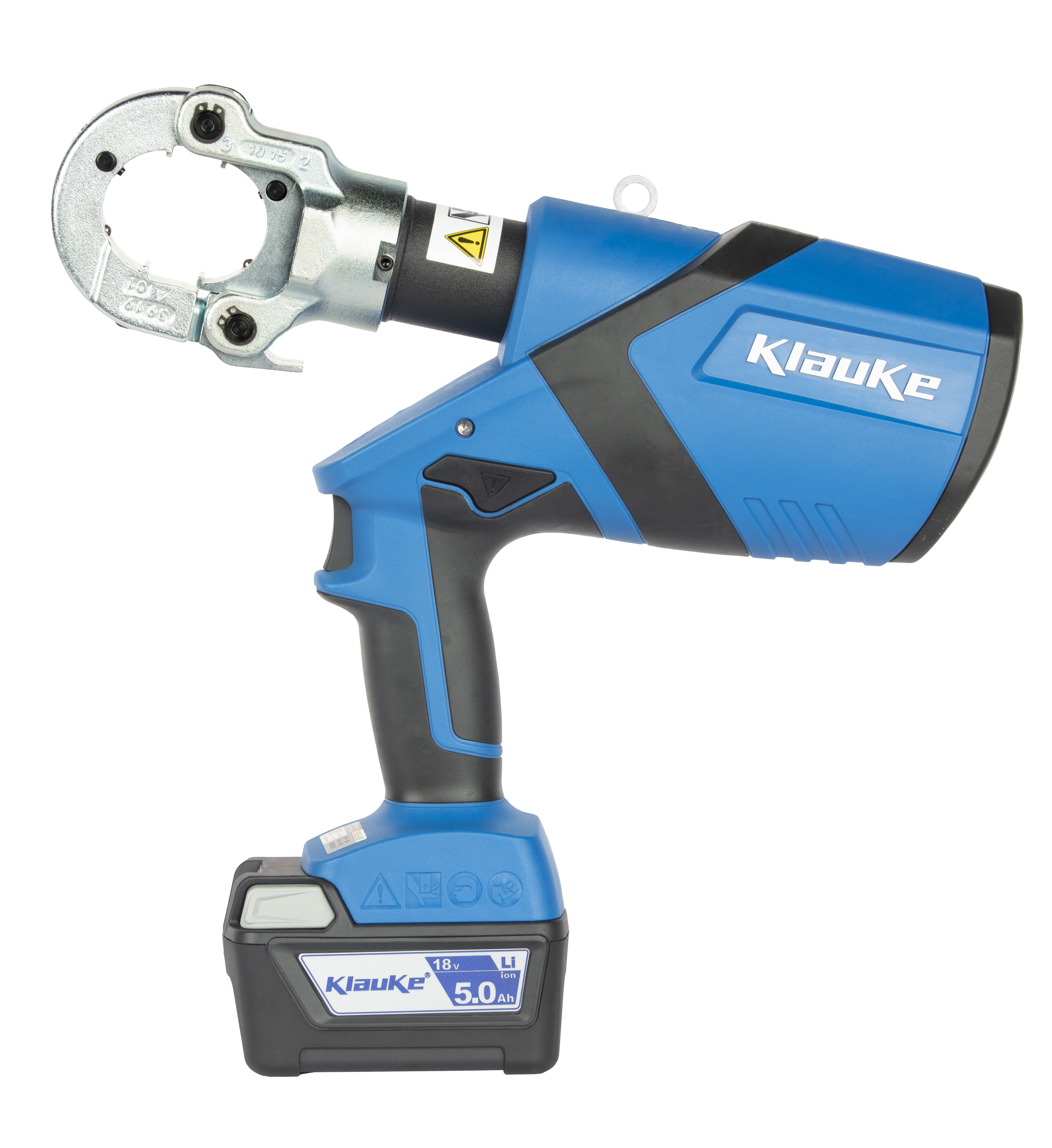

Model No.: EK6022AP
Catalog No.: 70653
Hydraulic Ram Force: 60 kN
Crimping Range: 6 - 300mm² (copper)
Opening Size: 22 mm
Tool Weight: 4.2 kg. including battery
Head Rotation: 350°
Battery: 18V 5.0Ah lithium battery
Charging Time: about 80 mins.
No. of Crimps: 300 crimps for crimping 150mm2 DIN copper terminal if full charge

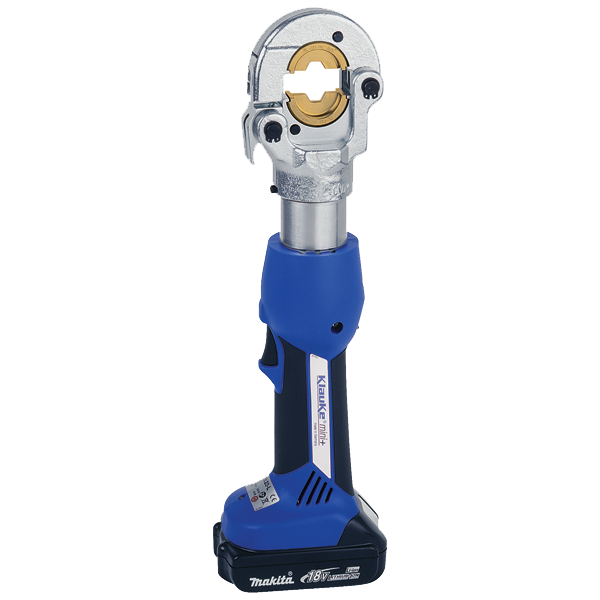

Model No.: EKM6022CL
Catalog No.: 70678
Hydraulic Ram Force: 60 kN
Crimping Range: 6 - 300mm²
Opening Size: 17.5 mm
Cycle Time: 3 - 5 sec. (depending on crimp cross-section)
Tool Weight: 3.0 kg. including battery
Head Rotation: 350°
Battery: 18V 2.5Ah lithium battery
Charging Time: 40 mins.
No. of Crimps: approx. 150 - 200 at 150 mm² Cu DIN
